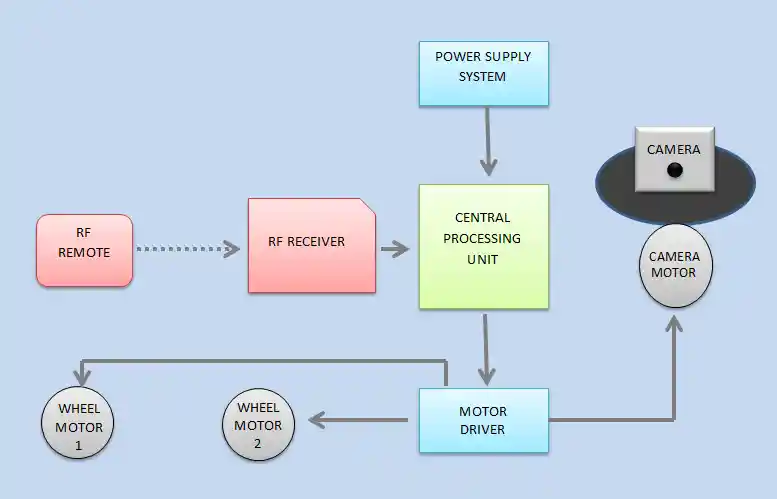

CPU: Central processing unit is the brain of RF BASED ROBOT. It processes all inputs and gives corresponding outputs.
MOTOR :
We are using DC gear motors of about 1000rpm. These motor are use to rotate wheels and also help in changing direction robot’s motion.
RADIO FREQUENCY(RF) TRANSMITTER:
It uses RF frequency to transmit controlling signal from remote control to the ROBOT.
RADIO FREQUENCY(RF) RECEIVER:
It uses RF frequency to receive controlling signal from remote control to the ROBOT.
SWITCHES:
Switches are used to control speed and direction of all motors. It is mounted on RF transmitter and are use remotely.
FURTHER MODIFICATION
In future, it can be used for domestic robots. We can also improve its functions by using GPS navigation system.
